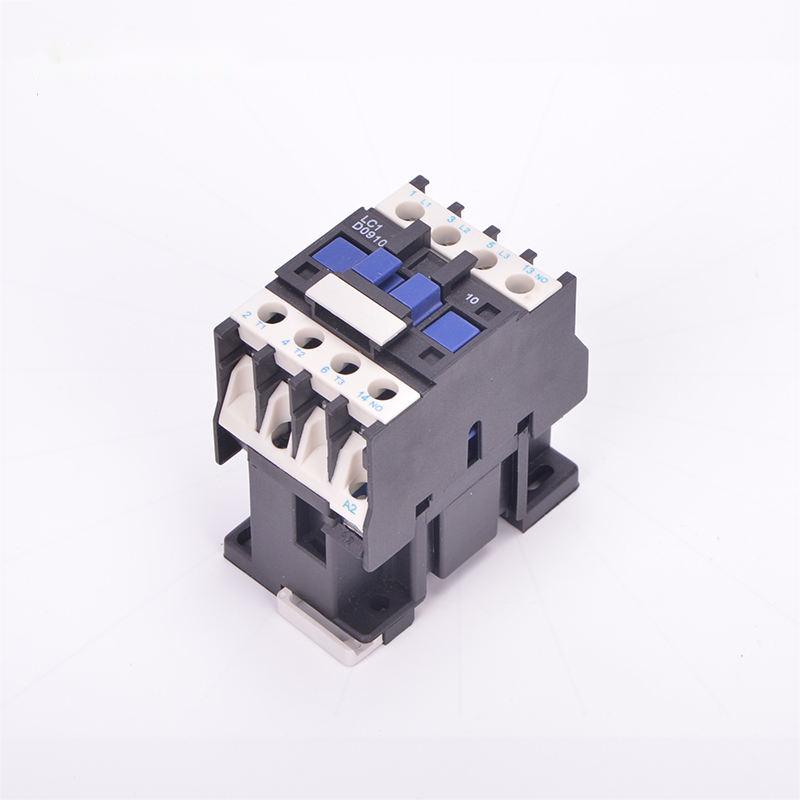

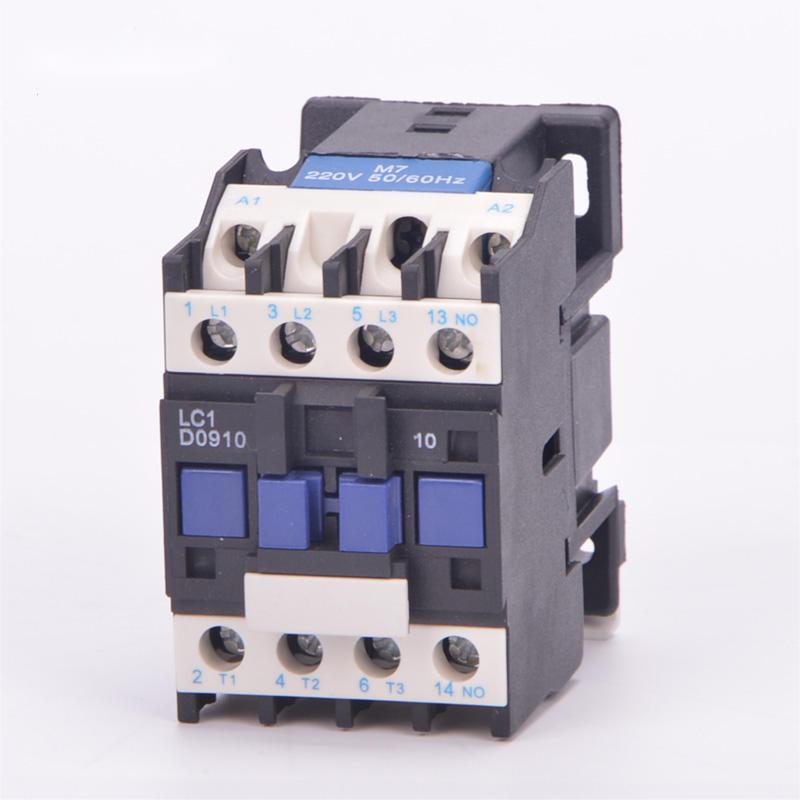

9A-95A General Electric Contactor 3P 4P 50 60HZ Changeover Contactor
Application:
SC series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ , rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the thermal relay, it becomes the electromagnetic starter for protecting the overload circuits.
This series contactor complies with GB 14048, IEC60947-4-1
General:
*The installation altitude less than 2000m.
*The surrounding temperature range: from -5°C ~ +40°C.
*In the non-explosive condition. or without adequate erosion and
destruction of gas and dust conductive area .
*Without rain and snow invade.
* Pollution level 2.
Model and Implication:
Main parameters and Technical Performance:
| Type | SC09 |
| Rated heating current (A) | 20 |
| Rated insulation voltage (V) | 690 |
| Rated impact withstand voltage (KV) | 6 |
| Rated making capacity | 10le |
| Rated breaking capacity | 8le |
| Poles | 3 |
| Auxiliary contact | NO/NC |
| Short-time withstand current(A) | 10S | 72 |
| Rated working current(A) | 380V | AC-3 | 9 |
| AC-4 | 3.5 |
| 660V | AC-3 | 6.6 |
| AC-4 | 1.5 |
AC-3 capacity of phase 3
squirrel-cage motor (AC-3) KW | 220V | 2.2 |
| 380V | 4 |
| 660V | 5.5 |
| Operation frequency (times/h) | Electrical life | AC-3 | 1200 |
| AC-4 | 300 |
| Mechanical life | 3600 |
| Electrical life (10000/times) | AC-3 | 100 |
| AC-4 | 20 |
| Mechanical life (10000/times) | 1000 |
| Equipped fuse type | RT16-20 |
| Rated control supply voltage Us(V) | 50/60Hz | 12~480 |
| Operation range | Pull-in | (85%~110%)Us +40℃ |
| Releasing | (20%~75%)Us -5℃ |
| Ac coil average power(VA) | Start | 70 |
| Keeping | 8 |
| Power efficiency class | class 3 |
| Thermal loss(W) | 2~3 |
| Actuation time(ms) | Close | 12~25 |
| Break | 5~20 |
| Main circuit wiring | flexible wire without cold
pressing terminal (㎟) | 1 stick | 1～4 |
| 2 sticks | 1～4 |
flexible wire with cold
pressing terminal (㎟) | 1 stick | 1～4 |
| 2 sticks | 1～2.5 |
| Hard wire (㎟) | 1 stick | 1~4 |
| 2 sticks | 1～4 |
| Fastening screw size | | M3.5 |
| Tightening fastening torque (N.m) | | 0.8 |
| Control loop wiring | flexible wire without cold
pressing terminal (㎟) | 1 stick | 1～4 |
| 2 sticks | 1～4 |
flexible wire with cold
pressing terminal (㎟) | 1 stick | 1～4 |
| 2 sticks | 1～2.5 |
| Hard wire (㎟) | 1 stick | 1～4 |
| 2 sticks | 1～4 |
| Fastening screw size | | M3.5 |
| Tightening fastening torque (N.m) | | 0.8
|
Installation dimension:
| A max | B max | C max | a | b | ∅ |
| 57 | 86 | 95 | 40 | 48 | 4.5 |
