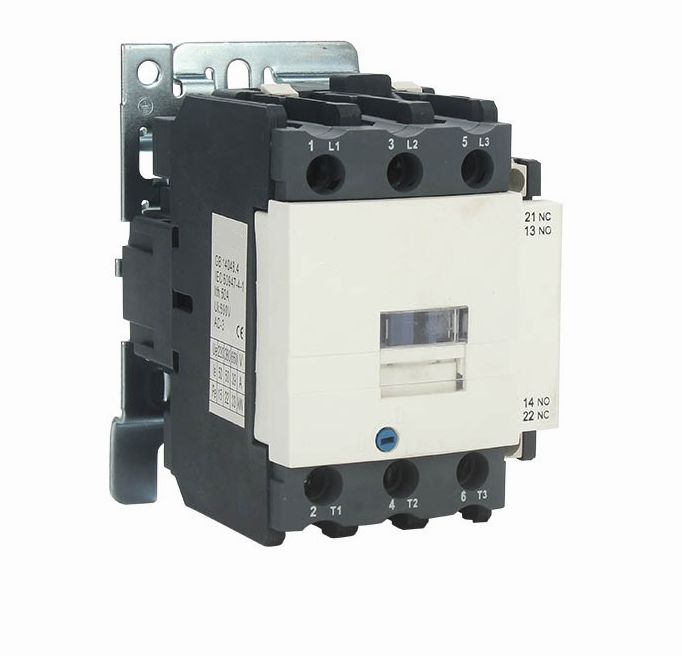

690VAC 3 Pole AC Contactor for Screw or DIN Rail Installation 50/60Hz Power Frequency

Name: 690VAC 3 Pole AC Contactor for Screw or DIN Rail Installation 5060Hz Power Frequency
Brand: YOKG or OEM
Price: 1 USD

690VAC 3 Pole AC Contactor for Screw or DIN Rail Installation 50/60Hz Power Frequency Manufactures

Brand Name : YOKG or OEM

Model Number : SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95

Place of Origin : Zhejiang, China

MOQ : 500

Delivery Time : 10 DAYS

Payment Terms : T/T,L/C

Certification : CE,TUV

Packaging Details : Standard export packing or According to customer's demand

Protection Level : IP20

Installation Method : Screw OR DIN RAIL

Rated Operational Voltage : 220VAC

Insulation Voltage : 690VAC

Number of Poles : 3

Power Frequency : 50/60Hz

Rated Current : 20A, 32A, 40A, 50A, 60A, 80A, 125A

Rated Operational Current : 80A

Contact Now

Product Description:

3 Pole AC Contactor Overview

Rated for an operational voltage of 220VAC, this contactor is capable of handling a wide range of electrical loads. It is available in multiple current ratings, including 20A, 32A, 40A, 50A, 60A, 80A, and 125A, making it suitable for a variety of applications.

The 3 Pole AC Contactor features three poles, including one normally open (NO) and one normally closed (NC) contact, providing both ON and OFF control for the connected circuit. This allows for greater flexibility and versatility in controlling the flow of electricity.

In addition, the contactor has a rated insulation voltage of 690VAC, ensuring safe and reliable operation even in high voltage environments. It also has an insulation voltage of 690VAC, providing an extra layer of protection against electrical hazards.

Technical Parameters:

Product Name	3 Pole AC Contactor (LC1D series)
Number of Auxiliary Contacts	3
Rated Current	20A, 32A, 40A, 50A, 60A, 80A, 125A
Rated Insulation Voltage	690VAC
Power Frequency	50/60Hz
Number of Poles	3
Installation Method	Rail or Screw
Rated Voltage	220VAC
Insulation Voltage	690VAC
Rated Operational Voltage	220VAC
Protection Level	IP20

Applications:

The 3 Pole AC Contactor is used in a wide range of applications, such as:

Industrial control systems
Power distribution systems
Motor control circuits
Lighting control systems
Heating and ventilation systems
And many more

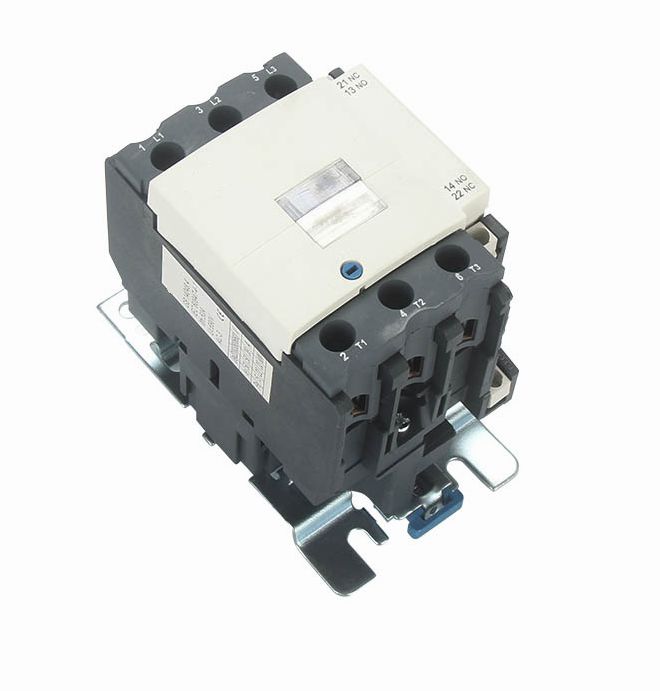

690VAC 3 Pole AC Contactor for Screw or DIN Rail Installation 50/60Hz Power Frequency
